Product Details
Place of Origin: China
Brand Name: HOPE
Certification: ISO900; CE(EU)
Model Number: HP10
Payment & Shipping Terms
Minimum Order Quantity: 30 PIECE
Price: CNY 2000 - 2600 RMB/PIECE
Packaging Details: Wooden box
Delivery Time: 5-8 DAYS
Piston: |
40CrNiMo |
Oil Seals: |
NOK |
Body: |
20CrMoA,carburized,quenched |
Chisel: |
42CrMo |
Weight: |
95kg |
Drive Flow: |
15-25litre/min |
Impact Frequency: |
800-1400 B.m.p |
Applicable Weight: |
0.8-2.5 T |
Valve: |
20CrMo |
Through Bolt*4s: |
42CrMo |
Length: |
1080mm |
Piston: |
40CrNiMo |
Oil Seals: |
NOK |
Body: |
20CrMoA,carburized,quenched |
Chisel: |
42CrMo |
Weight: |
95kg |
Drive Flow: |
15-25litre/min |
Impact Frequency: |
800-1400 B.m.p |
Applicable Weight: |
0.8-2.5 T |
Valve: |
20CrMo |
Through Bolt*4s: |
42CrMo |
Length: |
1080mm |

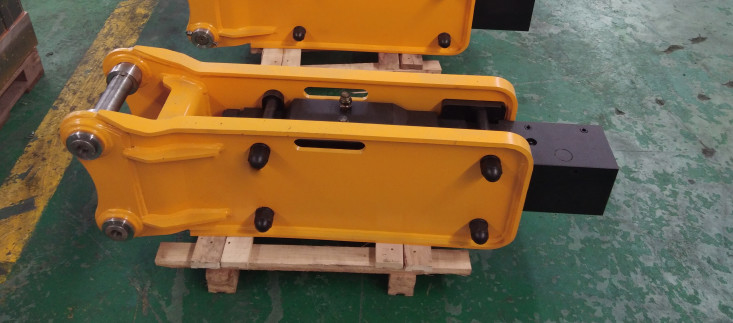

HOPE Hydraulic Breaker
HOPE hydraulic breaker
Compact and flexible,strong adaptability to working conditions
Powerful breaking, amazing efficiency
Precise control, highly efficient operation
Durable and reliable, worry-free maintenance
1.Piston adopt high-quality material 40CrNiMo.After quenching and low tempering, it has high hardness, uniform structure, good wear resistance and high contact fatigue performance.
2.The steel body is made by the Alloy structural steel 20CrMo.
3.High efficiency of reversing valve.High precision,strict roundness and concentricity quality inspection ensure that the valve is not stuck.
4.High-quality material such as 42CrMo is adopted on the chisel to support high strength,toughness,hardenability,fatigue limit and multiple impact resistance after quenching and tempering treatment.
5.With high-quality oil seals,the products have the feature of good sealing function,high temperature resistance and corrosion resistance.The products can adopt to the vibration of the machine and the egocentricity of the spindle to provide a long time service.
6.Using the high-quality carbon structural steel,the screws have higher strength,good mechanical properties and deformation resistance.
| ITEMS | TOP TYPE BREAKER | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Models | 35 | 40 | 45 | 53 | 68 | 70 | 75 | 85 | 100 | 140 | 155 | 165 | 175 | 185 | 195 |
| Gross Weight(kg) | 95 | 95 | 130 | 195 | 290 | 290 | 400 | 620 | 900 | 1800 | 2740 | 2970 | 3730 | 4620 | 5410 |
| Length(mm) | 1080 | 1080 | 1239 | 1440 | 1638 | 1638 | 1864 | 2120 | 2380 | 2860 | 3100 | 3440 | 3650 | 3940 | 4020 |
| Driving Flow-Rate(litre/min) | 15-25 | 15-25 | 20-30 | 25-50 | 40-70 | 40-70 | 50-90 | 60-100 | 80-110 | 120-180 | 180-240 | 200-260 | 210-290 | 220-290 | 220-290 |
| Operating Pressure(Kg/cm2) | 90-120 | 90-120 | 90-120 | 90-120 | 95-130 | 95-130 | 120-150 | 130-160 | 150-170 | 160-180 | 160-180 | 160-180 | 160-180 | 180-220 | 180-220 |
| Striking Frequency(b.m.p) | 800-1400 | 800-1400 | 700-1200 | 600-1100 | 500-900 | 500-900 | 400-800 | 400-800 | 350-700 | 350-500 | 350-450 | 250-400 | 200-350 | 200-250 | 180-200 |
| Hose Diameter(inch) | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 3/4 | 3/4 | 1 | 5/4 | 5/4 | 5/4 | 5/4 | 5/4 |
| Rod Diameter(mm) | 35 | 40 | 45 | 53 | 68 | 70 | 75 | 85 | 100 | 140 | 155 | 165 | 175 | 185 | 195 |
| Applicable Vehicle Weight(ton) | 0.8-2.5 | 0.8-2.5 | 1.2-3 | 2-3.5 | 4-6 | 4-6 | 4.5-7 | 7-14 | 10-15 | 18-26 | 28-35 | 30-40 | 35-50 | 35-55 | 40-55 |
ABOUT US
Yantai Hope Precision Machinery Co., Ltd. is a leading manufacture of hydraulic breaker and attachments, widely used in the construction, mining industries and other special projects.At present, the capacities of research and development, and manufacturing and the level of quality control system stand at the front end of the industry.
After nearly ten years of development, we process a professional and experienced technical research team.
We produce our own brand by ourselves, the models of our products respectively are SB05, SB10,SB20,SB30,SB35,SB40,SB43,SB45,SN70,SB81 and othe models.Our products are based on the quality of development. We use the highest quality raw materials and the most advanced manufacturing processes to provide the most durable quality products and best appearance and after-sale services.
